Gtk.PageSetup¶

Example¶

Subclasses:	None

Methods¶

Inherited:	GObject.Object (37)
Structs:	GObject.ObjectClass (5)

class	`new` ()
class	`new_from_file` (file_name)
class	`new_from_gvariant` (variant)
class	`new_from_key_file` (key_file, group_name)
	`copy` ()
	`get_bottom_margin` (unit)
	`get_left_margin` (unit)
	`get_orientation` ()
	`get_page_height` (unit)
	`get_page_width` (unit)
	`get_paper_height` (unit)
	`get_paper_size` ()
	`get_paper_width` (unit)
	`get_right_margin` (unit)
	`get_top_margin` (unit)
	`load_file` (file_name)
	`load_key_file` (key_file, group_name)
	`set_bottom_margin` (margin, unit)
	`set_left_margin` (margin, unit)
	`set_orientation` (orientation)
	`set_paper_size` (size)
	`set_paper_size_and_default_margins` (size)
	`set_right_margin` (margin, unit)
	`set_top_margin` (margin, unit)
	`to_file` (file_name)
	`to_gvariant` ()
	`to_key_file` (key_file, group_name)

Virtual Methods¶

Inherited:	GObject.Object (7)

Properties¶

None

Signals¶

Inherited:	GObject.Object (1)

Fields¶

Inherited:	GObject.Object (1)

Class Details¶

class Gtk.PageSetup(**kwargs)¶

Bases:	`GObject.Object`
Abstract:	No

A Gtk.PageSetup object stores the page size, orientation and margins. The idea is that you can get one of these from the page setup dialog and then pass it to the Gtk.PrintOperation when printing. The benefit of splitting this out of the Gtk.PrintSettings is that these affect the actual layout of the page, and thus need to be set long before user prints.

Margins

The margins specified in this object are the “print margins”, i.e. the parts of the page that the printer cannot print on. These are different from the layout margins that a word processor uses; they are typically used to determine the minimal size for the layout margins.

To obtain a Gtk.PageSetup use Gtk.PageSetup.new() to get the defaults, or use Gtk.print_run_page_setup_dialog() to show the page setup dialog and receive the resulting page setup.

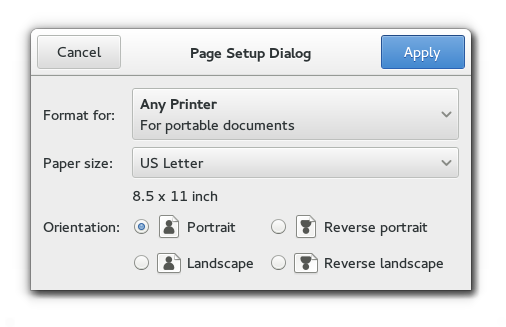

A page setup dialog

static GtkPrintSettings *settings = NULL;
static GtkPageSetup *page_setup = NULL;

static void
do_page_setup (void)
{
  GtkPageSetup *new_page_setup;

  if (settings == NULL)
    settings = gtk_print_settings_new ();

  new_page_setup = gtk_print_run_page_setup_dialog (GTK_WINDOW (main_window),
                                                    page_setup, settings);

  if (page_setup)
    g_object_unref (page_setup);

  page_setup = new_page_setup;
}

Printing support was added in GTK+ 2.10.

classmethod new()[source]¶

Returns:	a new `Gtk.PageSetup`.
Return type:	`Gtk.PageSetup`

Creates a new Gtk.PageSetup.

New in version 2.10.

classmethod new_from_file(file_name)[source]¶

Parameters:	file_name (`str`) – the filename to read the page setup from
Raises:	`GLib.Error`
Returns:	the restored `Gtk.PageSetup`
Return type:	`Gtk.PageSetup`

Reads the page setup from the file file_name. Returns a new Gtk.PageSetup object with the restored page setup, or None if an error occurred. See Gtk.PageSetup.to_file().

New in version 2.12.

classmethod new_from_gvariant(variant)[source]¶

Parameters:	variant (`GLib.Variant`) – an a{sv} `GLib.Variant`
Returns:	a new `Gtk.PageSetup` object
Return type:	`Gtk.PageSetup`

Desrialize a page setup from an a{sv} variant in the format produced by Gtk.PageSetup.to_gvariant().

New in version 3.22.

classmethod new_from_key_file(key_file, group_name)[source]¶

Parameters:	key_file (`GLib.KeyFile`) – the `GLib.KeyFile` to retrieve the page_setup from group_name (`str` or `None`) – the name of the group in the key_file to read, or `None` to use the default name “Page Setup”
Raises:	`GLib.Error`
Returns:	the restored `Gtk.PageSetup`
Return type:	`Gtk.PageSetup`

Reads the page setup from the group group_name in the key file key_file. Returns a new Gtk.PageSetup object with the restored page setup, or None if an error occurred.

New in version 2.12.

copy()[source]¶

Returns:	a copy of self
Return type:	`Gtk.PageSetup`

Copies a Gtk.PageSetup.

New in version 2.10.

get_bottom_margin(unit)[source]¶

Parameters:	unit (`Gtk.Unit`) – the unit for the return value
Returns:	the bottom margin
Return type:	`float`

Gets the bottom margin in units of unit.

New in version 2.10.

get_left_margin(unit)[source]¶

Parameters:	unit (`Gtk.Unit`) – the unit for the return value
Returns:	the left margin
Return type:	`float`

Gets the left margin in units of unit.

New in version 2.10.

get_orientation()[source]¶

Returns:	the page orientation
Return type:	`Gtk.PageOrientation`

Gets the page orientation of the Gtk.PageSetup.

New in version 2.10.

get_page_height(unit)[source]¶

Parameters:	unit (`Gtk.Unit`) – the unit for the return value
Returns:	the page height.
Return type:	`float`

Returns the page height in units of unit.

Note that this function takes orientation and margins into consideration. See Gtk.PageSetup.get_paper_height().

New in version 2.10.

get_page_width(unit)[source]¶

Parameters:	unit (`Gtk.Unit`) – the unit for the return value
Returns:	the page width.
Return type:	`float`

Returns the page width in units of unit.

Note that this function takes orientation and margins into consideration. See Gtk.PageSetup.get_paper_width().

New in version 2.10.

get_paper_height(unit)[source]¶

Parameters:	unit (`Gtk.Unit`) – the unit for the return value
Returns:	the paper height.
Return type:	`float`

Returns the paper height in units of unit.

Note that this function takes orientation, but not margins into consideration. See Gtk.PageSetup.get_page_height().

New in version 2.10.

get_paper_size()[source]¶

Returns:	the paper size
Return type:	`Gtk.PaperSize`

Gets the paper size of the Gtk.PageSetup.

New in version 2.10.

get_paper_width(unit)[source]¶

Parameters:	unit (`Gtk.Unit`) – the unit for the return value
Returns:	the paper width.
Return type:	`float`

Returns the paper width in units of unit.

Note that this function takes orientation, but not margins into consideration. See Gtk.PageSetup.get_page_width().

New in version 2.10.

get_right_margin(unit)[source]¶

Parameters:	unit (`Gtk.Unit`) – the unit for the return value
Returns:	the right margin
Return type:	`float`

Gets the right margin in units of unit.

New in version 2.10.

get_top_margin(unit)[source]¶

Parameters:	unit (`Gtk.Unit`) – the unit for the return value
Returns:	the top margin
Return type:	`float`

Gets the top margin in units of unit.

New in version 2.10.

load_file(file_name)[source]¶

Parameters:	file_name (`str`) – the filename to read the page setup from
Raises:	`GLib.Error`
Returns:	`True` on success
Return type:	`bool`

Reads the page setup from the file file_name. See Gtk.PageSetup.to_file().

New in version 2.14.

load_key_file(key_file, group_name)[source]¶

Parameters:	key_file (`GLib.KeyFile`) – the `GLib.KeyFile` to retrieve the page_setup from group_name (`str` or `None`) – the name of the group in the key_file to read, or `None` to use the default name “Page Setup”
Raises:	`GLib.Error`
Returns:	`True` on success
Return type:	`bool`

Reads the page setup from the group group_name in the key file key_file.

New in version 2.14.

set_bottom_margin(margin, unit)[source]¶

Parameters:	margin (`float`) – the new bottom margin in units of unit unit (`Gtk.Unit`) – the units for margin

Sets the bottom margin of the Gtk.PageSetup.

New in version 2.10.

set_left_margin(margin, unit)[source]¶

Parameters:	margin (`float`) – the new left margin in units of unit unit (`Gtk.Unit`) – the units for margin

Sets the left margin of the Gtk.PageSetup.

New in version 2.10.

set_orientation(orientation)[source]¶

Parameters:	orientation (`Gtk.PageOrientation`) – a `Gtk.PageOrientation` value

Sets the page orientation of the Gtk.PageSetup.

New in version 2.10.

set_paper_size(size)[source]¶

Parameters:	size (`Gtk.PaperSize`) – a `Gtk.PaperSize`

Sets the paper size of the Gtk.PageSetup without changing the margins. See Gtk.PageSetup.set_paper_size_and_default_margins().

New in version 2.10.

set_paper_size_and_default_margins(size)[source]¶

Parameters:	size (`Gtk.PaperSize`) – a `Gtk.PaperSize`

Sets the paper size of the Gtk.PageSetup and modifies the margins according to the new paper size.

New in version 2.10.

set_right_margin(margin, unit)[source]¶

Parameters:	margin (`float`) – the new right margin in units of unit unit (`Gtk.Unit`) – the units for margin

Sets the right margin of the Gtk.PageSetup.

New in version 2.10.

set_top_margin(margin, unit)[source]¶

Parameters:	margin (`float`) – the new top margin in units of unit unit (`Gtk.Unit`) – the units for margin

Sets the top margin of the Gtk.PageSetup.

New in version 2.10.

to_file(file_name)[source]¶

Parameters:	file_name (`str`) – the file to save to
Raises:	`GLib.Error`
Returns:	`True` on success
Return type:	`bool`

This function saves the information from self to file_name.

New in version 2.12.

to_gvariant()[source]¶

Returns:	a new, floating, `GLib.Variant`
Return type:	`GLib.Variant`

Serialize page setup to an a{sv} variant.

New in version 3.22.

to_key_file(key_file, group_name)[source]¶

Parameters:	key_file (`GLib.KeyFile`) – the `GLib.KeyFile` to save the page setup to group_name (`str` or `None`) – the group to add the settings to in key_file, or `None` to use the default name “Page Setup”

This function adds the page setup from self to key_file.

New in version 2.12.
